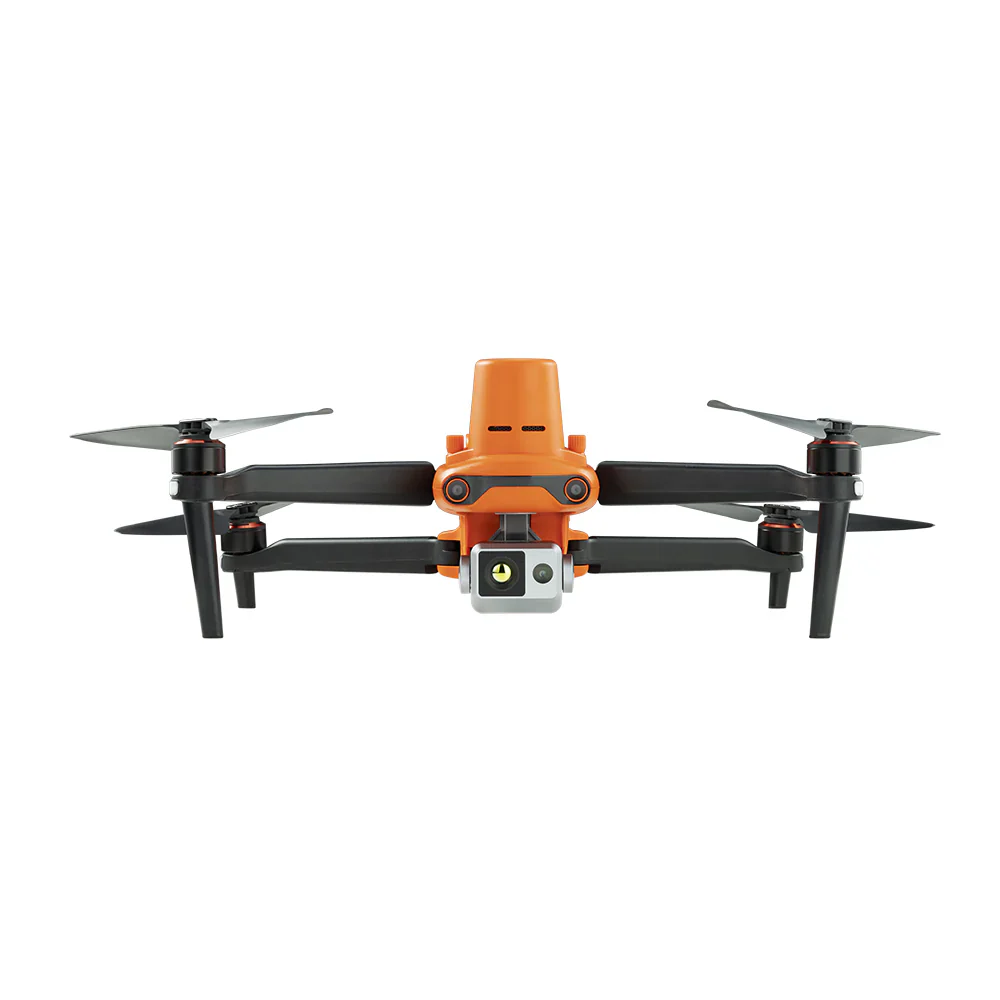

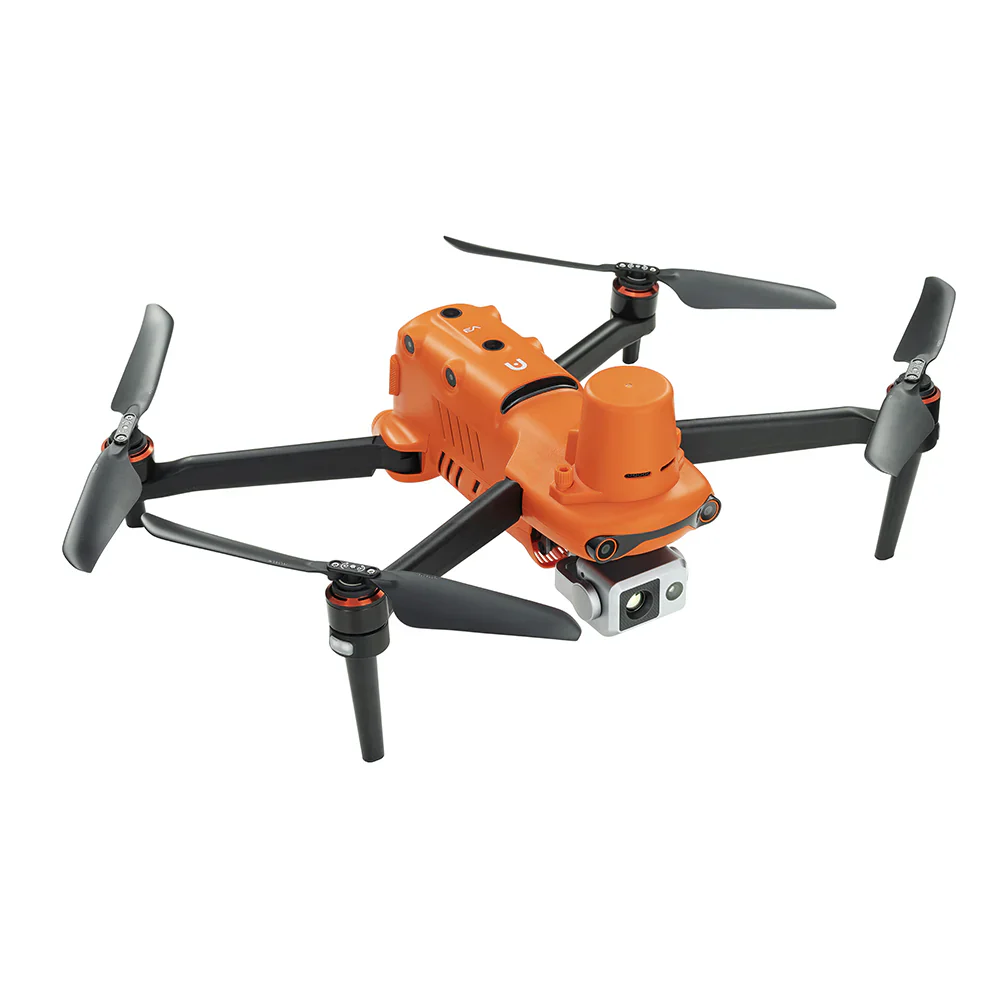

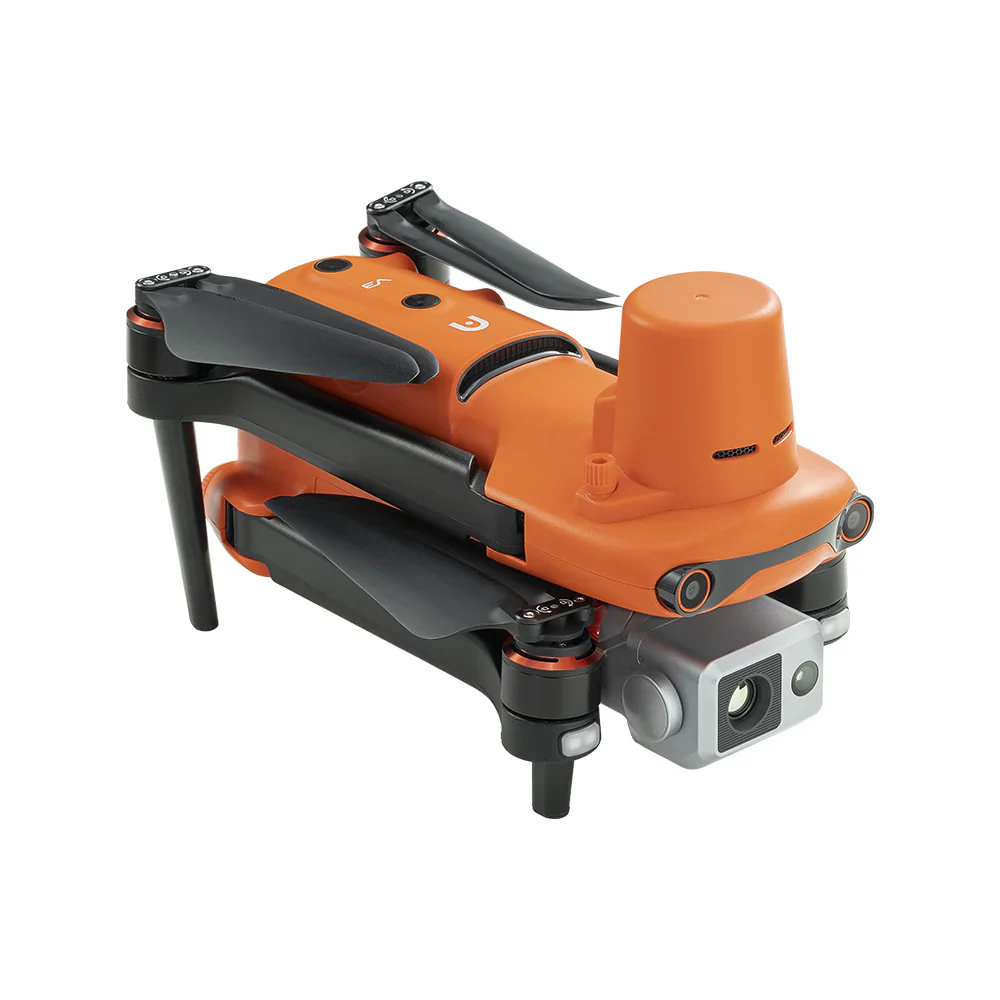

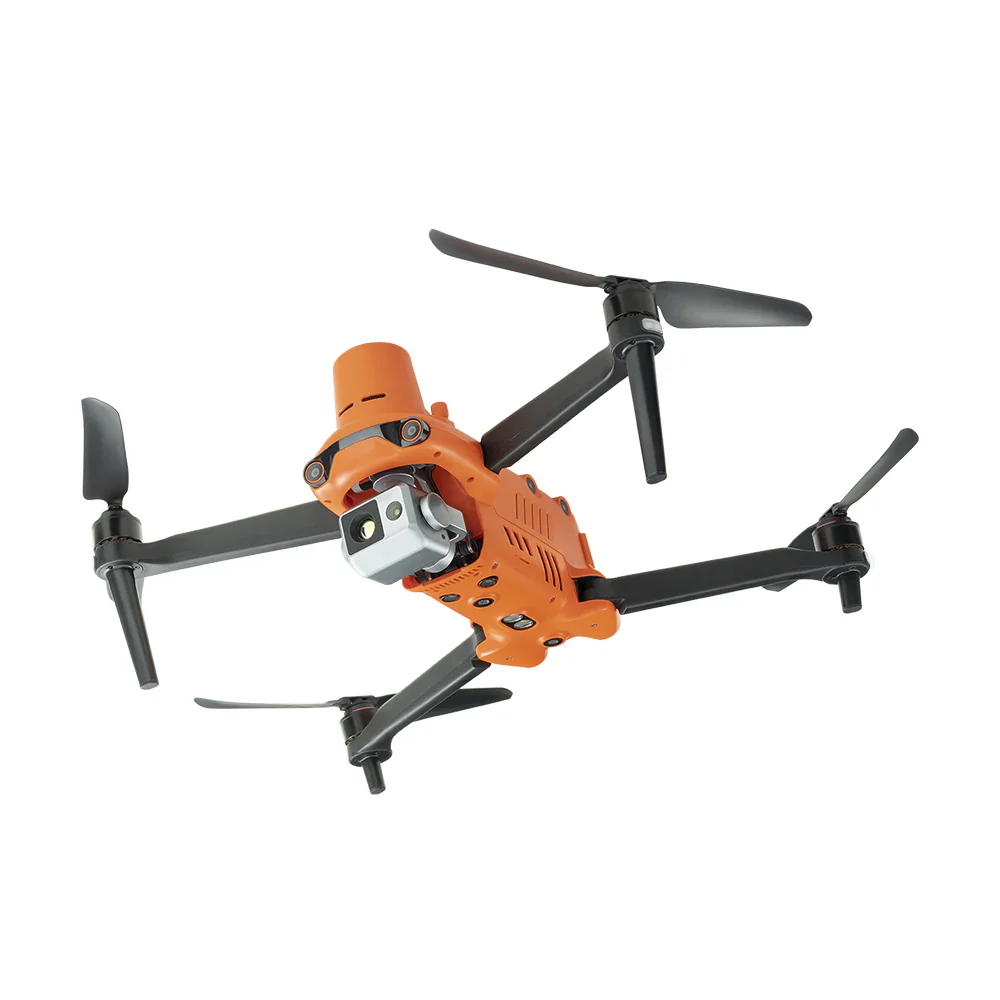

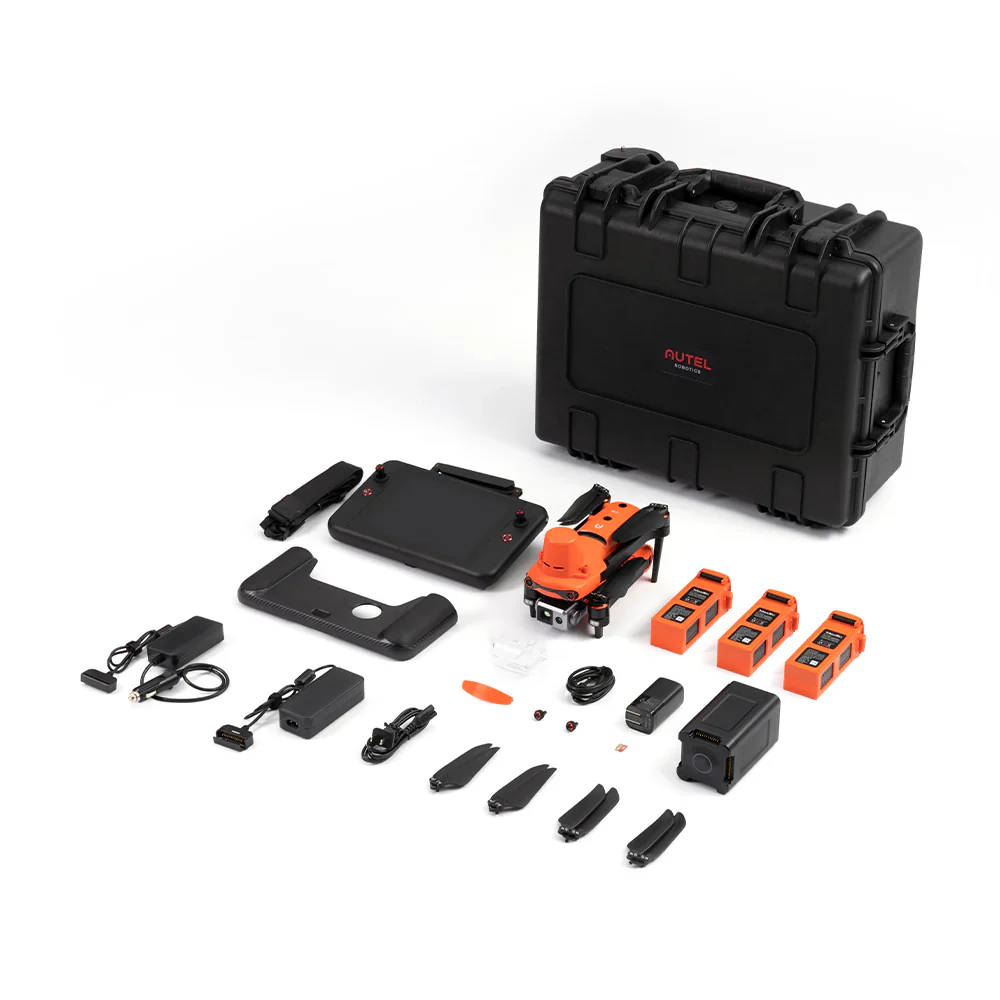

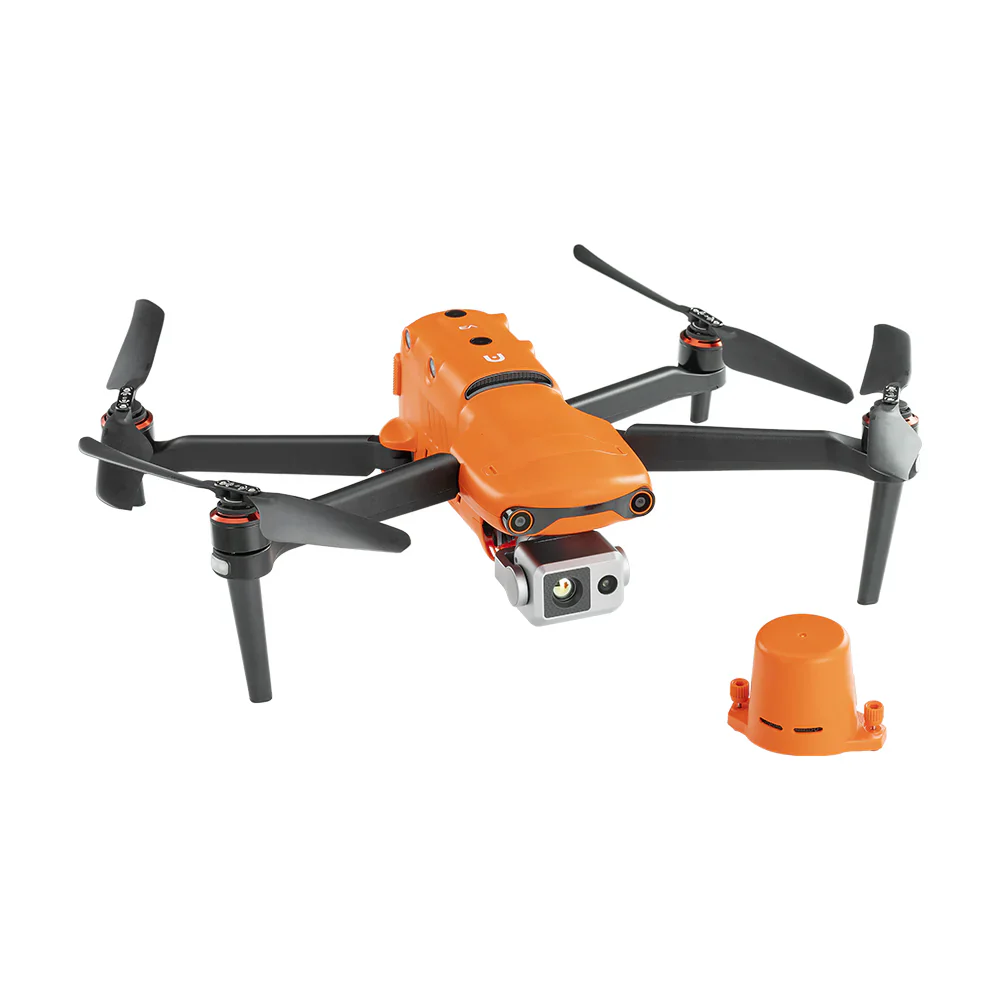

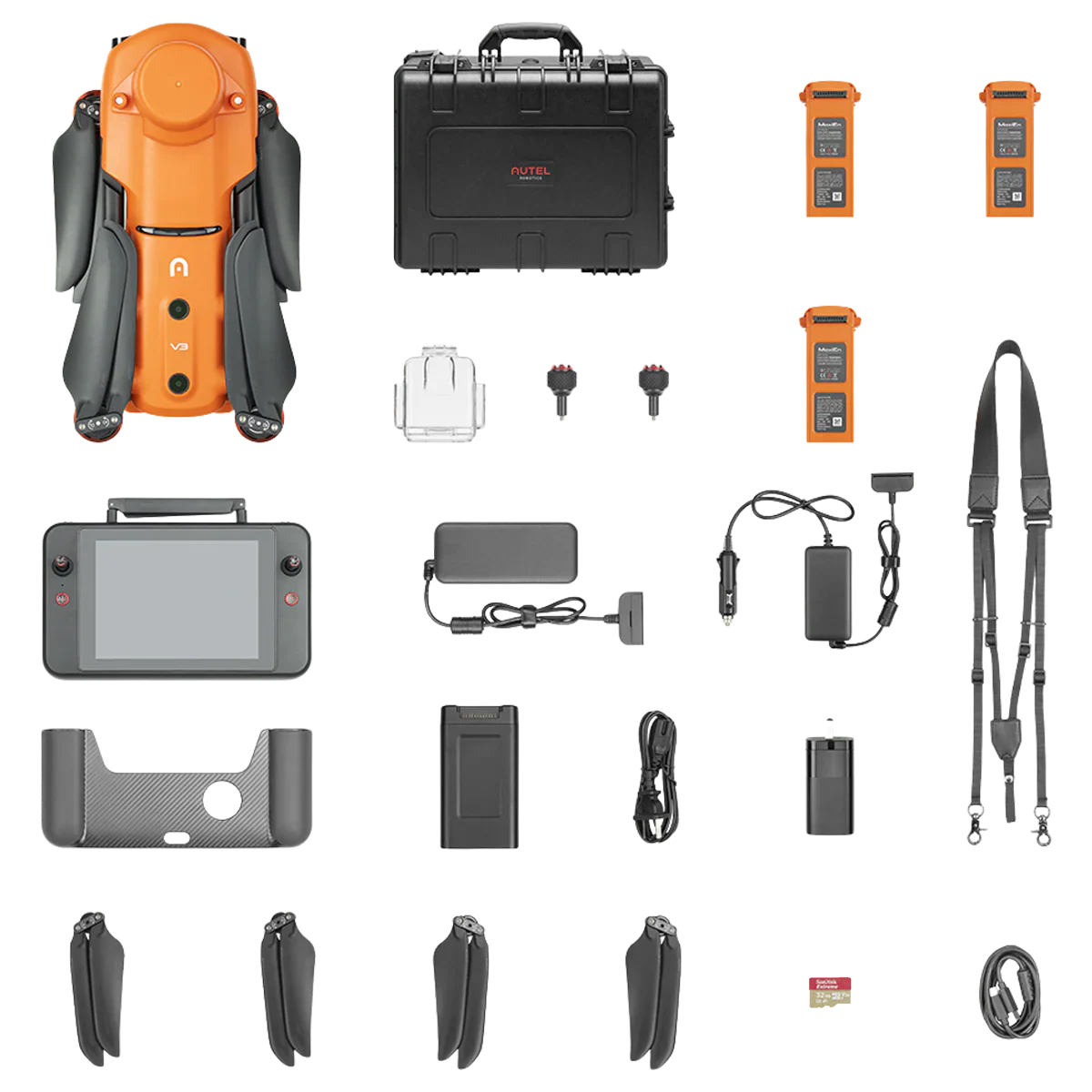

Autel Robotics EVO II Dual 640T RTK Rugged Bundle V3
Autel Robotics EVO II Dual 640T RTK Rugged Bundle V3
Description
Product Specifications
Autel Robotics EVO II Dual 640T RTK Rugged Bundle V3 Product Specifications
| Specification | Details |
|---|---|
| Product Series | EVO II RTK Series |
| Manufacturer | Autel Robotics |
| SKU | 102001517 |
| UPC | 889520014519 |
| Compatible With | Autel Evo II |
| Open Box | No |
| RTK Module | Precision RTK module |
| Positioning Accuracy | Centimeter-level positioning |
| PPK Support | Yes (Post-Processing Kinematic) |
| Time Synchronization | Supported |
| Satellite Data Recording | Records original satellite observation data, camera exposure parameters, and other data |
| Base Station Support | Supports A-RTK base station and RTK network |
| Camera Design | Dual camera design with thermal imaging sensor |
| Thermal Sensor Resolution | Up to 640 × 512 |
| Thermal Color Palettes | 10 palettes |
| Thermal Refresh Rate | 30Hz |
| Picture-in-Picture Mode | Supported |
| Lens | 13mm |
| Digital Zoom | 16x digital zoom |
| Subject Recognition Distance | Up to 100 meters |
| Temperature Detection | Radiometric temperature detection |
| Image Processing | 10-bit A-log for post-production flexibility |
| Mission Types | Rectangular or Polygon missions |
| Obstacle Avoidance | 360° obstacle avoidance with 19 groups of sensors |
| Flight Time | 38 minutes (Industry-leading) |
| Transmission Range | 9 miles |
| Max Speed | 45 mph |
Product Manual
Autel Robotics EVO II Dual 640T V3 Quick Guide
Autel Robotics EVO II Dual 640T V3 Brochure
Product Warranty
Autel Robotics Warranty
| After-sales Type | Detail | The following conditions do not meet the return and exchange conditions |
|---|---|---|
|
Retreat |
Within 7 calendar days of product purchase: 1. The product packaging, accessories, gifts, manuals are complete, and there is no artificial damage, and it is not activated for use, which does not affect the second sale; 2. After the product is activated, there is a performance failure that is not artificially damaged. |
×The request for return is made more than 7 (15) calendar days from the date of receipt; ×Returned goods are incomplete, the outer packaging, accessories, gifts, and manuals are incomplete, or the appearance is artificially damaged; ×When returning the goods, it is impossible to provide legal proof of purchase or receipts, or to forge or alter the receipts; ×Product quality problems caused by collisions and burns that are not caused by quality problems of the product itself, as well as product quality problems caused by unauthorized modification, foreign objects (water, oil, sand, etc.), improper installation, use and operation not in accordance with the instructions in the manual; ×Torn or altered labels, machine serial numbers, waterproof marks, anti-counterfeit marks, etc.; ×Products damaged by force caused by unavoidable factors, such as fire, flood, lightning, traffic accidents, etc.; ×After contacting Autel Robotics customer service to confirm the return service, the corresponding item was not sent within 7 days. ×Other circumstances described in the policy. |
|
Change |
Within 15 calendar days of product purchase: 1. There is a performance failure that is not artificially damaged, and the machine is disassembled without permission; 2. During transportation, the product was damaged, and the transportation company provided proof of damage. |
|
|
Build |
1. In order to be covered by the warranty, the performance failure must be caused by a non-human error, and the purchased aircraft must be within the warranty period; 2. Any unauthorized dissassembly or modification of the aircraft with outside vendor parts will void the warranty; 3. Please provide valid proof of purchase, such as a bill or receipt. *Note (a) Free maintenance: the repaired parts inherit the warranty period of the whole machine or reset for 90 days, whichever is longer;
(b) Paid repairs: The warranty period for repaired parts will be recalculated;
(c) Selective maintenance, water ingress maintenance: the whole machine will be out of warranty;
(d) Discounted product replacement: Warranty period will be recalculated. |
×A collision or burn accident occurred due to man-made non-product quality problems; ×Damage caused by unauthorized modification, disassembly, or opening of the shell under the guidance of an unofficial manual; ×Damage or water ingress caused by incorrect installation, use and operation not in accordance with the instructions of the manual; ×In the absence of official instructions, the customer repairs the damage caused by the assembly by himself; ×Damage caused by circuit modification guided by unofficial manuals, or improper matching and use of battery packs and chargers; ×All damages caused by flying and shooting that are not operated in accordance with the product manual; ×Damage caused by manipulation in harsh environments, such as strong wind, rain, sand, etc.; ×Damage caused by manipulation in a complex electromagnetic environment or a strong interference source environment, such as mining areas, transmission towers, high-voltage lines, substations, etc.; ×Damage caused by manipulation in the case of mutual interference with other wireless devices, such as transmitter, image transmission signal, WiFi signal interference, etc.; ×Damage caused by take-off when the weight exceeds the safe take-off weight; ×Damage caused by forced flight when parts are aged or damaged; ×Damage caused by reliability or compatibility issues when used simultaneously with third-party components not certified by Autel Robotics; ×Damage caused by insufficient discharge when the battery is insufficient, or the use of a battery with quality problems; ×The machine serial number, factory label and other signs are torn or altered; ×After contacting Autel Robotics customer service to confirm the warranty service, the corresponding item was not sent within 7 calendar days. |
Aircraft Parts Warranty Period (Months)
| Product | Main Parts |
Warranty Period Months/In US |
Warranty Period Months/In EU |
Warranty Period Months/In APEC/SA/MENA |
|---|---|---|---|---|
| EVO Nano Series/EVO Lite Series/EVO II/EVO II PRO | Main Controller | 12 | 24 | 12 |
| Gimbal & Camera | 12 | 24 | 12 | |
| Vision Positioning System | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Propeller | - | - | - | |
| Dragonfish Lite/Dragonfish Standard/Dragonfish Pro | Main Controller | 12 | 24 | 12 |
| Gimbal & Camera(Z2/T3/T3H/M1/L20T/L50T) | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Base Station | 6 | 12 | 6 | |
| Base Station Turntable | 6 | 12 | 6 | |
| Base Station Tripod | 6 | 12 | 6 | |
| Base Station Charger | 6 | 12 | 6 | |
| EVO II Enterprise/EVO II RTK Series/EVO II Dual EVO Max Series EVO Lite Enterprise Series Autel Alpha |
Main Controller | 12 | 24 | 12 |
| Gimbal & Camera | 12 | 24 | 12 | |
| Vision Positioning System | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers) |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Propeller | - | - | - | |
| Spotlight | 6 |
12 | 6 | |
| RTK Module | 6 | 12 | 6 | |
| Strobe | 6 | 12 | 6 | |
| Speaker | 6 | 12 | 6 | |
| Live Deck | Live Deck | 6 | 12 | 6 |
| EVO NEST | EVO NEST | 12 | 24 | 12 |
Product FAQs
Q: What is the main difference between RTK series products and other EVO II series products?
A: Unlike the other EVO II series aircraft, the EVO II RTK is epuipped with a high-precision RTK positioning and navigation system.
Q: What is the effective image transmission range of the RTK Series?
A: In an open area that is unobstructed and free of interference, the FCC standard is 9 km and the CE standard is 5 km. (2.4GHz)
Q: In real-time mapping, can the aircraft continue mapping while the image transmission signal is lost?
A: If the image transmission signal is lost now and then, the aircraft will be able to continue mapping after reconnecting.
Q: What is the screen size and resolution of the remote controller?
A: The remote controller offerts a built-in 3.26-inch 854×480p ultra-bright touch screen.
Q: Which RTK base station modes are currently supported?
A: The A-RTK base station is currently supported.
Q: What is the RTK positioning accuracy?
A: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
Q: What is the difference between PPK and RTK mode and how to choose?
A: Real-Time Kinematic (RTK) and Post-Processed Kinematic (PPK) are both centimeter-level positioning systems; RTK is recommended when users have high requirements for convenience and real-time operation, and there is a network communication link in the survey area. If the user does not require real-time performance or is in an environment with a poor network communication, then the PPK post-processing method can be used.
Q: Does the EVO II RTK series provide measurements in relative coordinates or absolute coordinates?
A: The measurement coordinates given by the EVO II RTK are absolute coordinates.
Q: Does the aircraft support lossless zoom?
A: It can achieve 4x lossless zoom.
Original: $5,799.00
-70%$5,799.00
$1,739.70
