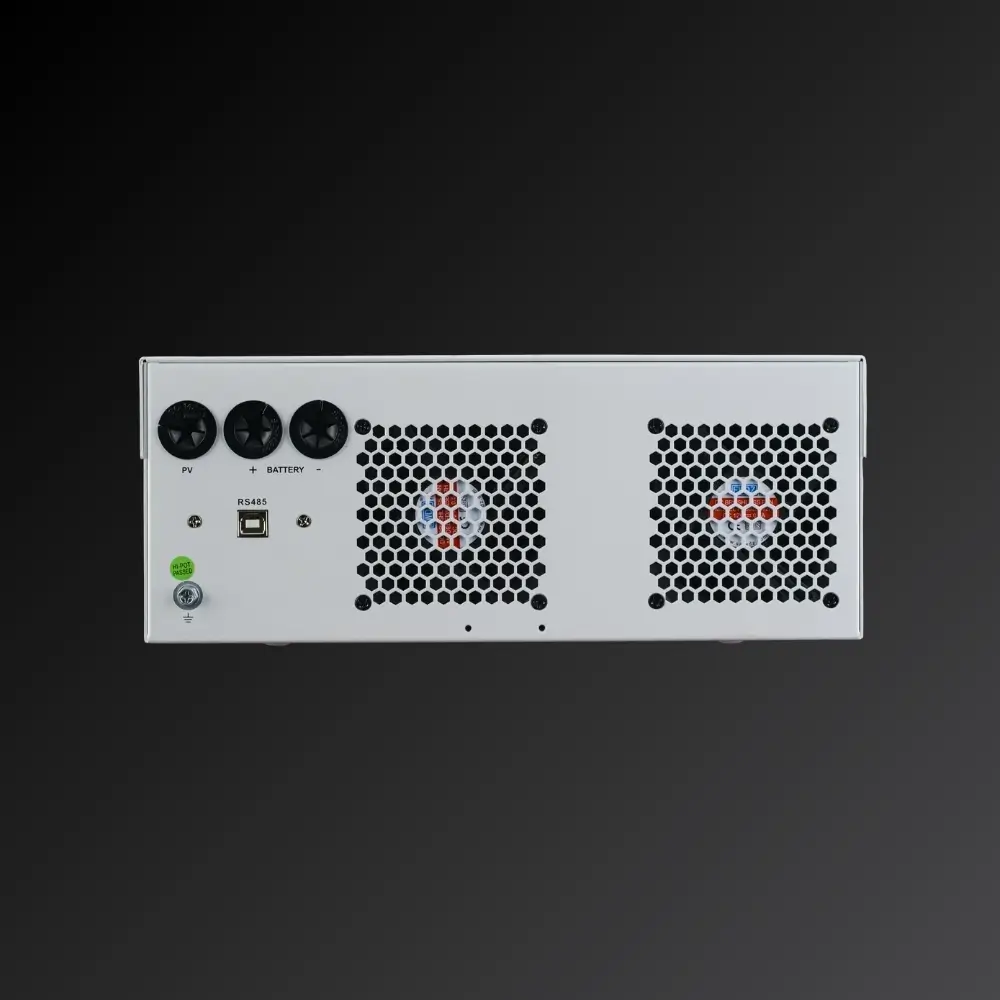

EG4 Solar Charge Controller MPPT | 500VDC 100A | MPPT100-48HV
EG4 Solar Charge Controller MPPT | 500VDC 100A | MPPT100-48HV
Description
Using technology from the EG4 3kW All-in-One Solar Inverter, the EG4 MPPT100-48HV is a simple, affordable, yet reliable solar charge controller MPPT(Maximum Power Point Tracking).
The EG4 MPPT100-48HV solar charge controller extracts the maximum available power from your PV modules and safely converts it to a lower voltage to charge your battery bank. Optimize your new or existing solar power system by adding this unit and take advantage of additional solar harvesting capabilities.
Powerful PV array MPPT voltage range - No need for combiner boxes
Max open-circuit voltage of 500VDC
5500W max usable solar panel PV array power when combining 2 strings with a branch connector
22A max PV string current
100A max charging current for quick battery charging rates - Adjustable from 0A-100A(Default 80A).
Capable of charging a 5.12kWh EG4 battery in ~1 hour @ 100A
Recommended operating usage: 80A total or 30A per battery to maintain battery lifespan
Battery voltage: 48V nominal.
48-62VDC charging voltage (default 56Vdc)
Built-in breakers for added protection.
Product Specifications
EG4 Solar Charge Controller MPPT | 500VDC 100A | MPPT100-48HV Product Specifications
EG4 MPPT100-48HV SOLAR CHARGE CONTROLLER – SPEC SHEET
Product Features
- Powerful PV array MPPT voltage range; no need for combiner boxes
- 100A max charging current for quick battery charging rates; adjustable from 0A-100A (default 80A)
- Built-in breakers for added protection
- BMS Communication
Product Manuals
EG4 Solar Charge Controller MPPT100-48HV Product Manuals
Product Warranty
EG4 Product Warranty
EG4 Electronics offers a 10-year Full Parts Replacement or Full Product Replacement Warranty from the date of original inverter (EG4 18kPV-12LV) purchase.
Your warranty must be registered within the first year of purchase or provide proof of purchase from an EG4 authorized distributor to remain valid. If you choose not to register or cannot provide proof of purchase, your warranty may be invalidated.
This limited warranty is to the original purchaser of the product and is one time transferable only if the product remains installed in the original installation location. All parts exchanges are covered during the warranty period. Outside of the continental US, replacement shipping charges may apply.
Product that is not purchased through an EG4 approved vendor is not covered under this warranty. A list of approved vendors can be found on our website. Reselling or removing the product from the original installation site will void the warranty.
Warranty Exclusions – EG4 Electronics has no obligation under this limited warranty for products subjected to the following conditions (including but not limited to):
- Damages incurred during installation/reinstallation or removal
- Poor workmanship performed by an individual, installer, or a firm
- Damages caused by mishandling the product or inappropriate environmental exposure
- Damages caused by improper maintenance or operating outside the specified operating conditions
- Tampering, altering, and/or disassembly of the product
- Using product in applications other than what the manufacturer intended
- Lightning, fire, flood, earthquake, terrorism, riots, or acts of God
- Any product with a serial number that has been altered, defaced, or removed
- Any unauthorized firmware updates/upgrades/patches
- Damages incurred from a voltage or current spikes due to open-loop lithium battery communications
EG4 product warranty is a limited warranty – EG4 limits its liability in the event of a product defect to repair or replacement in accordance with the terms of this limited warranty. EG4 is not responsible for any additional or indirect damages that may arise from the malfunctioning of the product. These damages could be incidental or consequential, including without limitation, any liability for the loss of revenue, profits, or time. EG4 shall not be liable for any direct or indirect loss of life, including but not limited to bodily injury, illness, or death arising from the misuse or mishandling of the product, whether caused by negligence or otherwise.
Product FAQs
N/A
