Autel Robotics EVO Lite 640T Enterprise Standard Package

Autel Robotics EVO Lite 640T Enterprise Standard Package

Description

The EVO Lite 640T Enterprise Edition features a dual gimbal system, with a visible light camera providing clear and detailed images, while the thermal imaging camera aids in decision-making during operations. The intelligent features of the professional Autel Enterprise Flight App enable flexible single-person deployment in scenarios such as law enforcement, public safety, and emergency rescue.

Features:

• Lightweight and Portable
• Easy Operation
• High-Precision Visual Navigation
• Dual-Binocular Obstacle Avoidance in Three Directions
• AI Target Recognition and Positioning
• 12 km Transmission Range
• 40 Minutes of Flight Time

Lightweight and Portable

The EVO Lite Enterprise Series aircraft weighs only 866 grams and has folded dimensions of just 210 x 123 x 95mm, making it easy to carry in a backpack. Its straightforward operation makes it ideal for efficient mission execution by a single operator

Autel Enterprise App

Autel Enterprise is a specialized flight mission software developed by Autel Robotics for industry applications. It boasts an optimized interface for streamlined, efficient operation and an intuitive, customizable toolbar for ease of use. Additionally, it incorporates intelligent functions to maximize the full industry potential of the EVO Lite Enterprise Series aircraft.

• Split-Screen Display:  Visible light, infrared, or map support dual-channel simultaneous output on the screen, providing comprehensive information through comparison.
• Customizable Toolbar:  Customize the menu toolbar in the app for quick access to frequently used functions, meeting personalized usage needs.
• Offline Maps:  Addresses the issue of map loading failures in no-network or weak-network environments by supporting offline maps, aiding in precise flight positioning.

AI Target Recognition and Positioning

Utilizing wide-angle or infrared lenses combined with intelligent AI algorithms and a self-learning system, the aircraft can automatically recognize and locate up to 64 different objects, including people, cars, and boats, and project their positions on the map.

Data Security with Multiple Protections

• Privacy Protection:  Flight logs, locations, and other user privacy data require user consent to upload.
• Encrypted Storage:  Supports AES encryption for photos, videos, and flight logs, requiring a password for access.
• Video Live Streaming:  Supports RTMP and GB28181 protocols for live streaming, allowing for remote real-time viewing and analysis.

High-Definition Video Transmission

Equipped with Autel SkyLink image transmission technology for a dual-signal, dual-reception system, improved image transmission anti-interference capability, and transmission distance reaching up to 12 kilometers. It supports 2.4GHz/5.2GHz/5.8GHz adaptive frequency hopping transmission, automatically selecting the best channel based on electromagnetic interference, providing strong anti-interference capability.

EVO Lite 640T Enterprise

Equipped with a dual gimbal, the wide-angle visible-light camera offers a broad field of view with vivid high-definition images, while the infrared thermal-imaging camera integrates high-resolution thermal-imaging algorithms, providing clear and detailed thermal source identification.

• Thermal Imaging Camera
  • 640*512 resolution
  • 9.1 mm focal length
  • 16x digital zoom
  • Temperature measurement range: -20°C to 150°C / 0°C to 550°C
  • Temperature accuracy: ±3°C or ±3% of reading (whichever is greater)

• Visible Light Camera
  • 1/2 inch CMOS
  • 48 million pixels
  • F2.8 aperture
  • 16x digital zoom
  • Maximum photo size of 8000*6000
  • Maximum video resolution of 4K 30P

Visual Perception System

The EVO Lite Enterprise aircraft is equipped with wide-angle vision sensors at the front, back, and bottom, ensuring reliable flight safety.

SDK Ecosystem | MSDK

The open Mobile SDK provides efficient, versatile, and easy-to-use control and service interfaces, enhancing development efficiency and enabling the creation of custom solution scenarios.

Flight Performance

The outstanding flight performance of the EVO Lite Enterprise Series effortlessly tackles various challenges across multiple scenarios, significantly enhancing the efficiency of single-person mission flights.

• 40 minutes of endurance
• Maximum horizontal flight speed of 18 meters per second
• Maximum takeoff altitude of 3000 meters

Autel Smart Controller SE V2

• Display:  6 inches, maximum brightness of 800nits, 1440*720 resolution.
• Battery life:  Removable battery design, 1.5 hours of battery life, supports hot swapping for continuous operation.
• Storage:  Built-in 32G storage space, supports 128G microSD card to expand storage space.
• Environmental adaptability: Operating temperature range from -10℃ to 40℃.

Autel Robotics EVO Lite Enterprise | Lightweight Yet Mighty

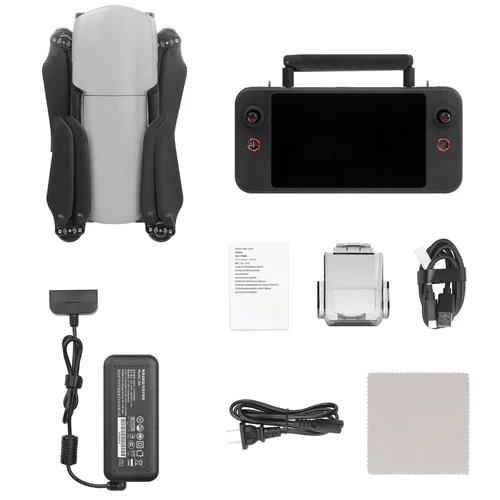

In the Box:

1 - Autel EVO Lite Enterprise 640T Aircraft
1 - Smart Controller SE V2
1 - Intelligent Flight Battery
1 - 32 GB SD Card
1 - Gimbal Cover
1 - Power Adapter
1 - USB-A to USB-C Data Cable
Documentation

Product Specifications

Autel Robotics EVO Lite 640T Enterprise Standard Package Product Specifications

Specification	Details
Short Description	Thermal and visible-light imaging for law enforcement, search and rescue, and firefighting
SKU	102003166
Manufacturer	Autel Robotics
UPC	889520217453
Compatible With	Autel EVO Lite
Video Resolution	640 Thermal

Product Manual

N/A

Product Warranty

Autel Robotics Warranty

After-sales Type	Detail	The following conditions do not meet the return and exchange conditions
Retreat	Within 7 calendar days of product purchase: 1. The product packaging, accessories, gifts, manuals are complete, and there is no artificial damage, and it is not activated for use, which does not affect the second sale; 2. After the product is activated, there is a performance failure that is not artificially damaged.	×The request for return is made more than 7 (15) calendar days from the date of receipt; ×Returned goods are incomplete, the outer packaging, accessories, gifts, and manuals are incomplete, or the appearance is artificially damaged; ×When returning the goods, it is impossible to provide legal proof of purchase or receipts, or to forge or alter the receipts; ×Product quality problems caused by collisions and burns that are not caused by quality problems of the product itself, as well as product quality problems caused by unauthorized modification, foreign objects (water, oil, sand, etc.), improper installation, use and operation not in accordance with the instructions in the manual; ×Torn or altered labels, machine serial numbers, waterproof marks, anti-counterfeit marks, etc.; ×Products damaged by force caused by unavoidable factors, such as fire, flood, lightning, traffic accidents, etc.; ×After contacting Autel Robotics customer service to confirm the return service, the corresponding item was not sent within 7 days. ×Other circumstances described in the policy.
Change	Within 15 calendar days of product purchase: 1. There is a performance failure that is not artificially damaged, and the machine is disassembled without permission; 2. During transportation, the product was damaged, and the transportation company provided proof of damage.
Build	1. In order to be covered by the warranty, the performance failure must be caused by a non-human error, and the purchased aircraft must be within the warranty period; 2. Any unauthorized dissassembly or modification of the aircraft with outside vendor parts will void the warranty; 3. Please provide valid proof of purchase, such as a bill or receipt. *Note (a) Free maintenance: the repaired parts inherit the warranty period of the whole machine or reset for 90 days, whichever is longer;   (b) Paid repairs: The warranty period for repaired parts will be recalculated;   (c) Selective maintenance, water ingress maintenance: the whole machine will be out of warranty;   (d) Discounted product replacement: Warranty period will be recalculated.	×A collision or burn accident occurred due to man-made non-product quality problems; ×Damage caused by unauthorized modification, disassembly, or opening of the shell under the guidance of an unofficial manual; ×Damage or water ingress caused by incorrect installation, use and operation not in accordance with the instructions of the manual; ×In the absence of official instructions, the customer repairs the damage caused by the assembly by himself; ×Damage caused by circuit modification guided by unofficial manuals, or improper matching and use of battery packs and chargers; ×All damages caused by flying and shooting that are not operated in accordance with the product manual; ×Damage caused by manipulation in harsh environments, such as strong wind, rain, sand, etc.; ×Damage caused by manipulation in a complex electromagnetic environment or a strong interference source environment, such as mining areas, transmission towers, high-voltage lines, substations, etc.; ×Damage caused by manipulation in the case of mutual interference with other wireless devices, such as transmitter, image transmission signal, WiFi signal interference, etc.; ×Damage caused by take-off when the weight exceeds the safe take-off weight; ×Damage caused by forced flight when parts are aged or damaged; ×Damage caused by reliability or compatibility issues when used simultaneously with third-party components not certified by Autel Robotics; ×Damage caused by insufficient discharge when the battery is insufficient, or the use of a battery with quality problems; ×The machine serial number, factory label and other signs are torn or altered; ×After contacting Autel Robotics customer service to confirm the warranty service, the corresponding item was not sent within 7 calendar days.

Aircraft Parts Warranty Period (Months)

Product	Main Parts	Warranty Period Months/In US	Warranty Period Months/In EU	Warranty Period Months/In APEC/SA/MENA
EVO Nano Series/EVO Lite Series/EVO II/EVO II PRO	Main Controller	12	24	12
	Gimbal & Camera	12	24	12
	Vision Positioning System	12	24	12
	Propulsion system  (excluding propellers	12	24	12
	Remote Controller	12	24	12
	RC Charger	12	24	12
	Battery	12 Months and Charge Cycle less than 200 Times, whichever go first.	12 Months and Charge Cycle less than 200 Times, whichever go first.	12 Months and Charge Cycle less than 200 Times, whichever go first.
	Battery Charger	12	24	12
	Propeller	-	-	-
Dragonfish Lite/Dragonfish Standard/Dragonfish Pro	Main Controller	12	24	12
	Gimbal & Camera（Z2/T3/T3H/M1/L20T/L50T）	12	24	12
	Propulsion system  (excluding propellers	12	24	12
	Remote Controller	12	24	12
	RC Charger	12	24	12
	Battery	12 Months and Charge Cycle less than 200 Times, whichever go first.	12 Months and Charge Cycle less than 200 Times, whichever go first.	12 Months and Charge Cycle less than 200 Times, whichever go first.
	Battery Charger	12	24	12
	Base Station	6	12	6
	Base Station Turntable	6	12	6
	Base Station Tripod	6	12	6
	Base Station Charger	6	12	6
EVO II Enterprise/EVO II RTK Series/EVO II Dual EVO Max Series EVO Lite Enterprise Series Autel Alpha	Main Controller	12	24	12
	Gimbal & Camera	12	24	12
	Vision Positioning System	12	24	12
	Propulsion system  (excluding propellers)	12	24	12
	Remote Controller	12	24	12
	RC Charger	12	24	12
	Battery	12 Months and Charge Cycle less than 200 Times, whichever go first.	12 Months and Charge Cycle less than 200 Times, whichever go first.	12 Months and Charge Cycle less than 200 Times, whichever go first.
	Battery Charger	12	24	12
	Propeller	-	-	-
	Spotlight	6	12	6
	RTK Module	6	12	6
	Strobe	6	12	6
	Speaker	6	12	6
Live Deck	Live Deck	6	12	6
EVO NEST	EVO NEST	12	24	12

Product FAQs

N/A
