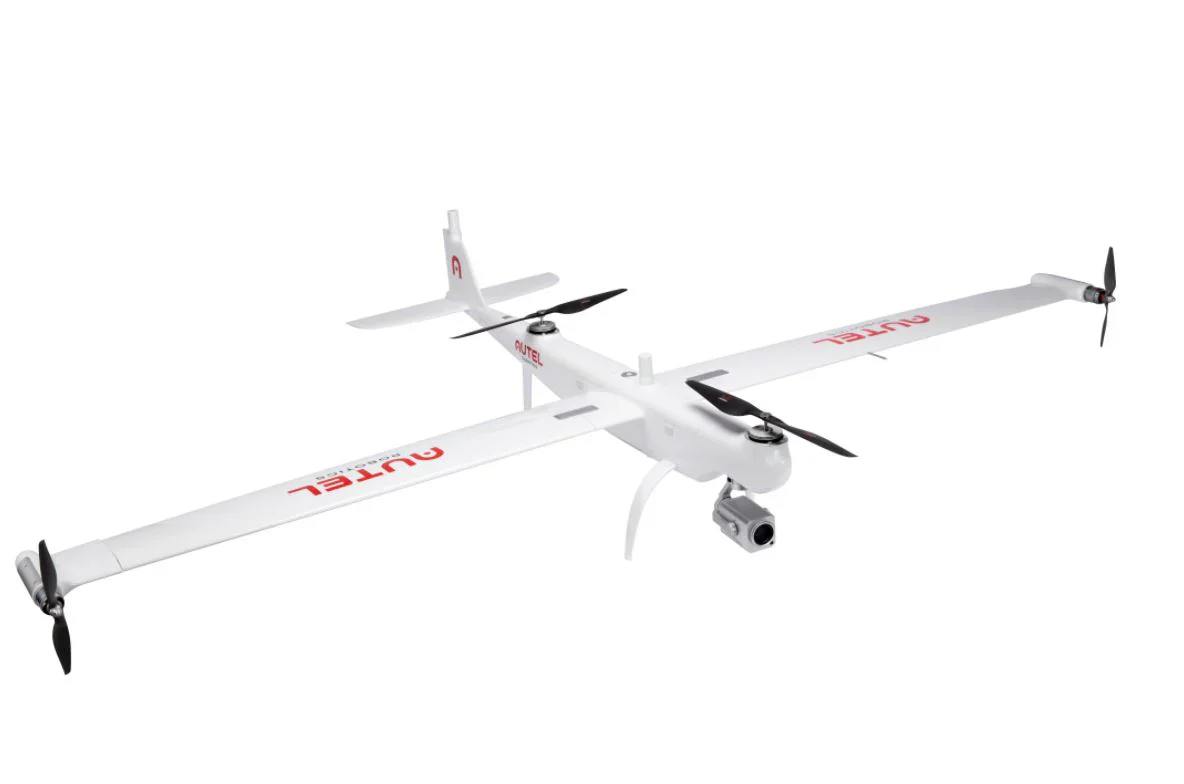

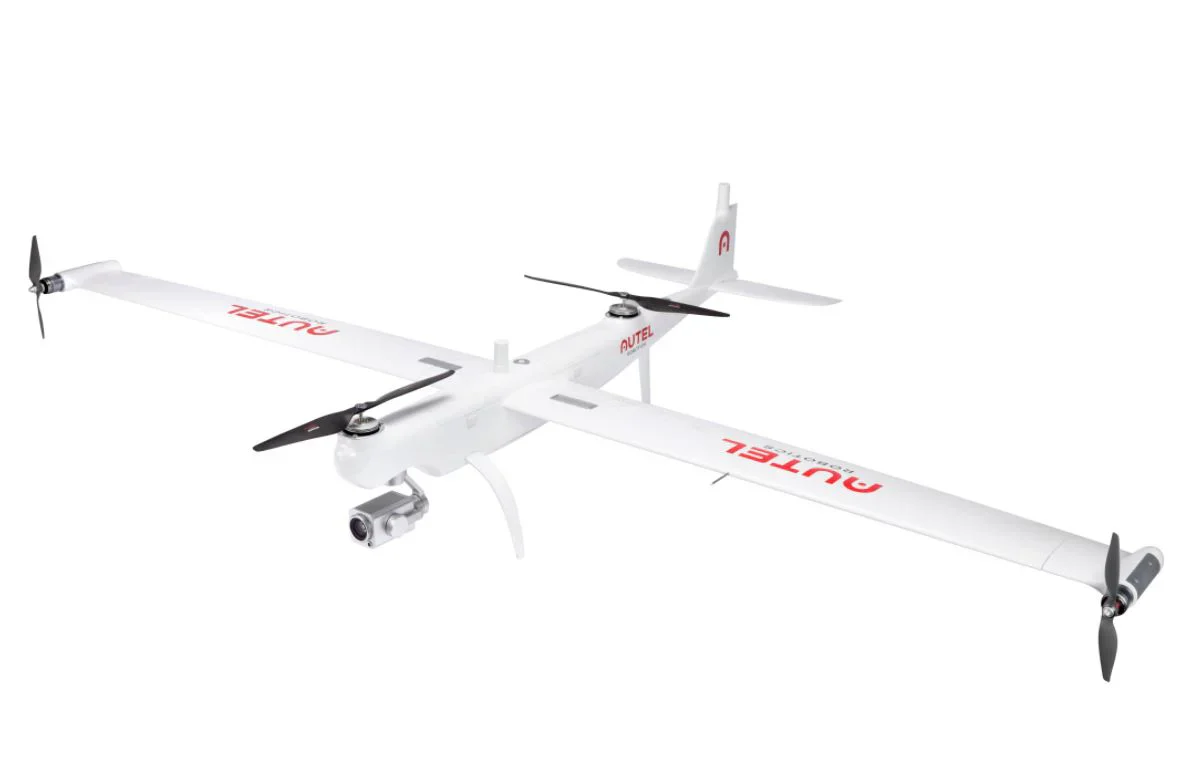

Autel Robotics Dragonfish Standard with T3 Payload Camera
Autel Robotics Dragonfish Standard with T3 Payload Camera
Description
INTELLIGENCE AND AUTONOMY
The Dragonfish comes with a variety of automated functions to streamline and simplify mission tasks. Advanced algorithms add an additional of layer of consistency and simplicity for the user workflow.
- 1-Button Take-off and Landing
- AI High-Speed Tracking
- Point of Interest
- Adaptive Tracking
- Advanced Mission Planning
SAFETY AND REDUNDANCY

INTERCHANGEABLE PAYLOAD SYSTEM
Tackle any operation with a variety of payload options that can be toolessly swapped to suit mission needs. Dragonfish payloads are designed to be interchangeable between aircraft classes to maximize the value and enhance the mission capability of the system.
| Drone Model | Z2 | T3 | T3H | L20T | L50T |
|---|---|---|---|---|---|
| Dragonfish Lite | ✅ | ✅ | ✅ | ❌ | ❌ |
| Dragonfish Standard | ✅ | ✅ | ✅ | ✅ | ❌ |
| Dragonfish Pro | ✅ | ✅ | ✅ | ✅ | ✅ |
SMART. SIMPLE. EFFICIENT.
The Dragonfish's unique tilt-rotor design simplifies operation while maximizing performance and efficiency. With no complicated moving parts, the Dragonfish is modular, waterproof, smart, and reliable. The Dragonfish is mission ready right out of the box and includes powerful AI tracking capabilities and a multitude of modular payload options. An endurance of up to 180 minutes (including payload) further augments the Dragonfish's robust mission capabilities and pushes it significantly ahead of the competition.
- Up To 180 minutes Flight Time
- 3 Minutes Quick Assembly
- 4K / 50X Optical Zoom
- Up To 108km/h Max Speed
- 18.6 Miles Transmission Range
- 5Second System Boot and Self Check

PRACTICAL APPLICATIONS
The Dragonfish's powerful platform and modular payload options gives it the flexibility to excel in a wide range of applications
- Public Safety
- Fire Fighting and Prevention
- Energy
- Traffic Monitoring and Management
- Coastal Overwatch and Security
- Agriculture

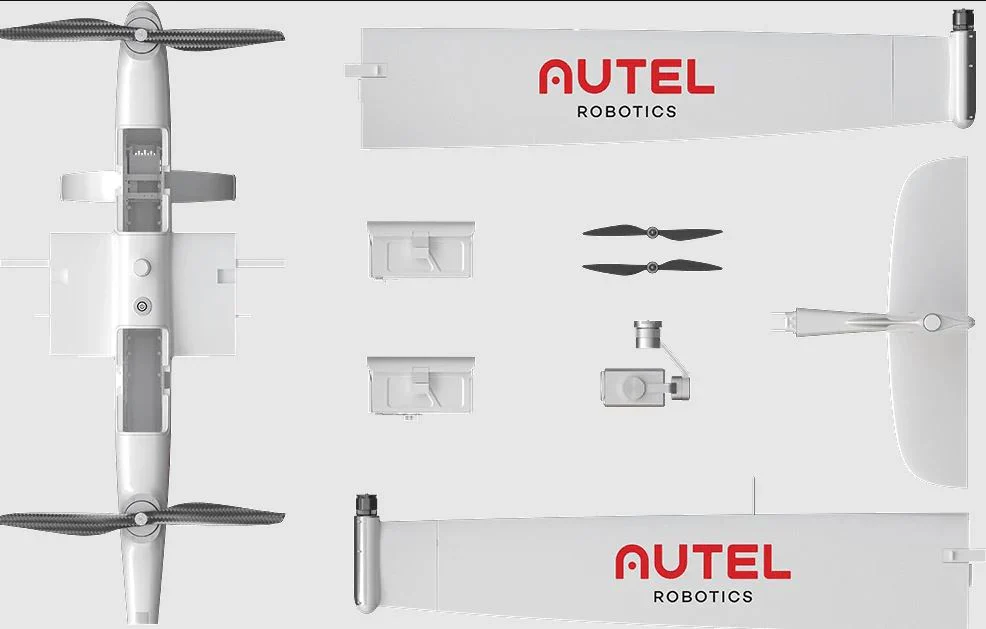

COMPACT AND PORTABLE
The Dragonfish can be easily disassembled by a one man team and will fit in the back of typical car trunks. The entire system can be assembled without tools and is ready to fly in less than 5 minutes.

What's in the Box:
- Aircraft body 1
- Base station 1
- Charger + AC line 1
- Base station antenna 2
- Base station tray 1
- Base station charger 1
- Repair tool kit 1
- Wing set 1
- Tail 1
- Airspeed indicator cover 1

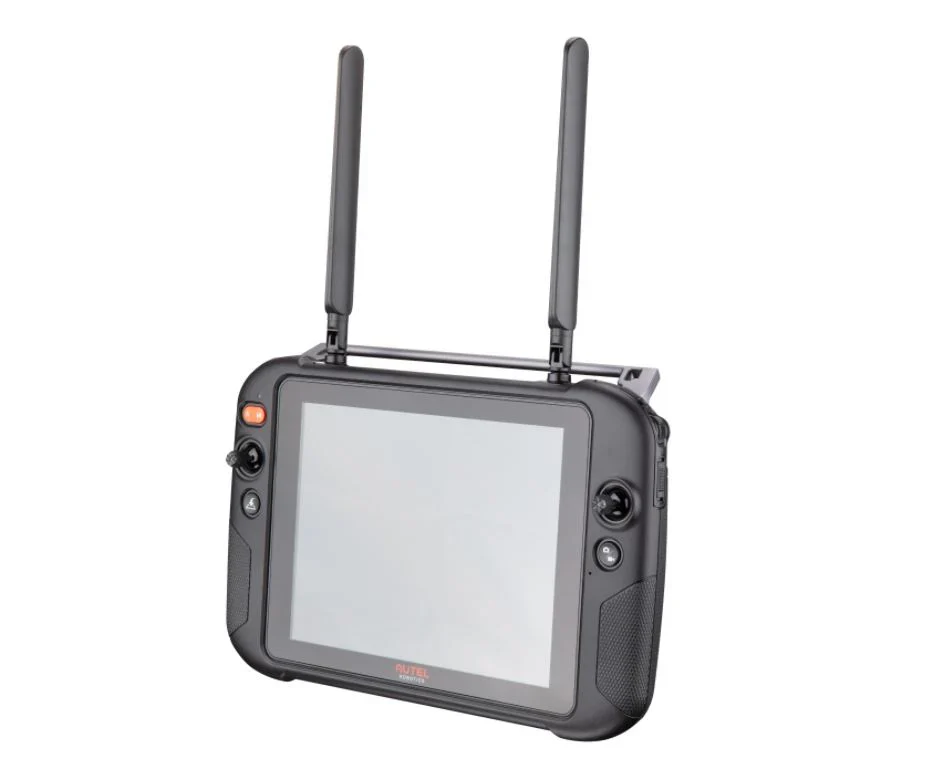

- 9.7 inch ground station 1

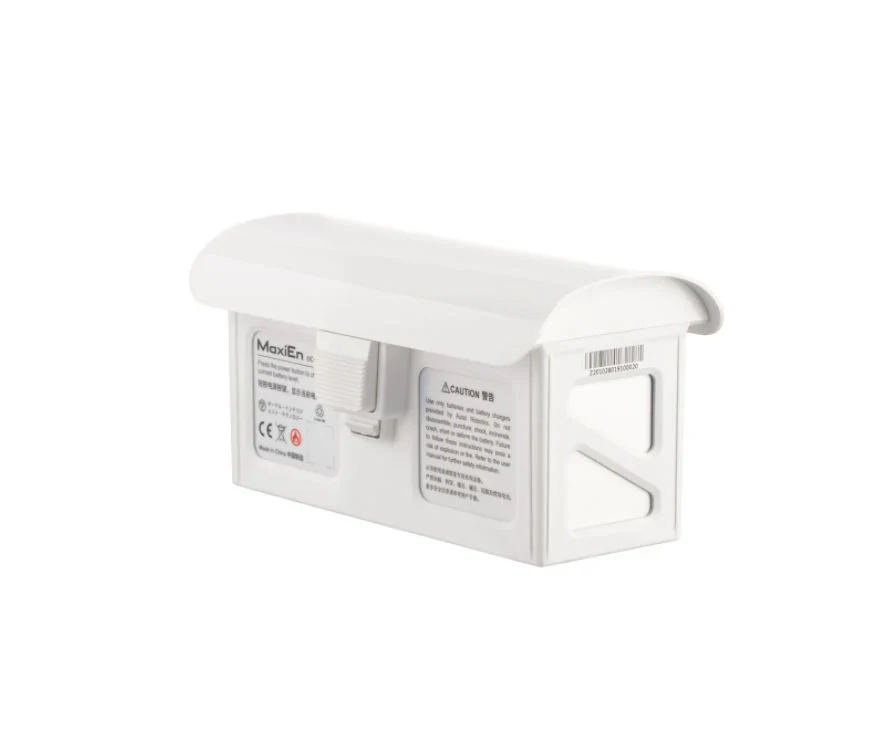

- Battery x4 (the actual quantity is subject to the purchased set)
- Propeller blades 2
- Base station feeder 2
- Base station tripod 1
- USB Type-C cable 1
- Gimbal Camera ( T3 Payload)
- Ground station lanyard 1
- Propeller holder 1
- TF card 1
- Documentation x 1 set (includes Dragonfish Standard, Base station, Charger, Battery quick guide, Disclaimer)
Product Specifications
Autel Robotics Dragonfish Standard with T3 Payload Camera Product Specifications
| Category | Specification |
|---|---|
| Manufacturer | Autel Robotics |
| SKU | 900010040 |
| UPC | 889520012980 |
| Compatibility | Autel Dragonfish |
| Open Box | No |
| Modular Design | Yes, tool-less assembly/disassembly |
| Waterproof | Yes |
| Smart / Autonomous Features | Yes |
| Mission Ready Out of Box | Yes |
| Flight Endurance | Up to 180 minutes (including payload) |
| Maximum Speed | 108 km/h |
| Transmission Range | 18.6 miles (30 km) |
| Assembly Time | 3–5 minutes |
| System Boot / Self-Check | 5 seconds |
| Take-off / Landing | 1-Button Automated |
| Camera / Payload | T3 Payload Camera |
| Optical Zoom | 4K / 50x |
| RTK Modules | 2 modules with GNSS Base Station support |
| Navigation Accuracy | Centimeter-level (with RTK + GNSS) |
| Ground Control Station | 9.7" 1000 nits ultra-bright TFT-LCD touchscreen |
| Controller Battery Life | Up to 4.5 hours (indefinite with external power) |
| Applications | Public Safety, Fire Fighting, Energy, Traffic Monitoring, Coastal Security, Agriculture |
Product Manual
AUTEL Dragonfish Standard Drone with T3 Payload Camera User Guide
Product Warranty
Autel Robotics Warranty
| After-sales Type | Detail | The following conditions do not meet the return and exchange conditions |
|---|---|---|
|
Retreat |
Within 7 calendar days of product purchase: 1. The product packaging, accessories, gifts, manuals are complete, and there is no artificial damage, and it is not activated for use, which does not affect the second sale; 2. After the product is activated, there is a performance failure that is not artificially damaged. |
×The request for return is made more than 7 (15) calendar days from the date of receipt; ×Returned goods are incomplete, the outer packaging, accessories, gifts, and manuals are incomplete, or the appearance is artificially damaged; ×When returning the goods, it is impossible to provide legal proof of purchase or receipts, or to forge or alter the receipts; ×Product quality problems caused by collisions and burns that are not caused by quality problems of the product itself, as well as product quality problems caused by unauthorized modification, foreign objects (water, oil, sand, etc.), improper installation, use and operation not in accordance with the instructions in the manual; ×Torn or altered labels, machine serial numbers, waterproof marks, anti-counterfeit marks, etc.; ×Products damaged by force caused by unavoidable factors, such as fire, flood, lightning, traffic accidents, etc.; ×After contacting Autel Robotics customer service to confirm the return service, the corresponding item was not sent within 7 days. ×Other circumstances described in the policy. |
|
Change |
Within 15 calendar days of product purchase: 1. There is a performance failure that is not artificially damaged, and the machine is disassembled without permission; 2. During transportation, the product was damaged, and the transportation company provided proof of damage. |
|
|
Build |
1. In order to be covered by the warranty, the performance failure must be caused by a non-human error, and the purchased aircraft must be within the warranty period; 2. Any unauthorized dissassembly or modification of the aircraft with outside vendor parts will void the warranty; 3. Please provide valid proof of purchase, such as a bill or receipt. *Note (a) Free maintenance: the repaired parts inherit the warranty period of the whole machine or reset for 90 days, whichever is longer;
(b) Paid repairs: The warranty period for repaired parts will be recalculated;
(c) Selective maintenance, water ingress maintenance: the whole machine will be out of warranty;
(d) Discounted product replacement: Warranty period will be recalculated. |
×A collision or burn accident occurred due to man-made non-product quality problems; ×Damage caused by unauthorized modification, disassembly, or opening of the shell under the guidance of an unofficial manual; ×Damage or water ingress caused by incorrect installation, use and operation not in accordance with the instructions of the manual; ×In the absence of official instructions, the customer repairs the damage caused by the assembly by himself; ×Damage caused by circuit modification guided by unofficial manuals, or improper matching and use of battery packs and chargers; ×All damages caused by flying and shooting that are not operated in accordance with the product manual; ×Damage caused by manipulation in harsh environments, such as strong wind, rain, sand, etc.; ×Damage caused by manipulation in a complex electromagnetic environment or a strong interference source environment, such as mining areas, transmission towers, high-voltage lines, substations, etc.; ×Damage caused by manipulation in the case of mutual interference with other wireless devices, such as transmitter, image transmission signal, WiFi signal interference, etc.; ×Damage caused by take-off when the weight exceeds the safe take-off weight; ×Damage caused by forced flight when parts are aged or damaged; ×Damage caused by reliability or compatibility issues when used simultaneously with third-party components not certified by Autel Robotics; ×Damage caused by insufficient discharge when the battery is insufficient, or the use of a battery with quality problems; ×The machine serial number, factory label and other signs are torn or altered; ×After contacting Autel Robotics customer service to confirm the warranty service, the corresponding item was not sent within 7 calendar days. |
Aircraft Parts Warranty Period (Months)
| Product | Main Parts |
Warranty Period Months/In US |
Warranty Period Months/In EU |
Warranty Period Months/In APEC/SA/MENA |
|---|---|---|---|---|
| EVO Nano Series/EVO Lite Series/EVO II/EVO II PRO | Main Controller | 12 | 24 | 12 |
| Gimbal & Camera | 12 | 24 | 12 | |
| Vision Positioning System | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Propeller | - | - | - | |
| Dragonfish Lite/Dragonfish Standard/Dragonfish Pro | Main Controller | 12 | 24 | 12 |
| Gimbal & Camera(Z2/T3/T3H/M1/L20T/L50T) | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Base Station | 6 | 12 | 6 | |
| Base Station Turntable | 6 | 12 | 6 | |
| Base Station Tripod | 6 | 12 | 6 | |
| Base Station Charger | 6 | 12 | 6 | |
| EVO II Enterprise/EVO II RTK Series/EVO II Dual EVO Max Series EVO Lite Enterprise Series Autel Alpha |
Main Controller | 12 | 24 | 12 |
| Gimbal & Camera | 12 | 24 | 12 | |
| Vision Positioning System | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers) |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Propeller | - | - | - | |
| Spotlight | 6 |
12 | 6 | |
| RTK Module | 6 | 12 | 6 | |
| Strobe | 6 | 12 | 6 | |
| Speaker | 6 | 12 | 6 | |
| Live Deck | Live Deck | 6 | 12 | 6 |
| EVO NEST | EVO NEST | 12 | 24 | 12 |
Product FAQs
N/A
Original: $112,750.00
-70%$112,750.00
$33,825.00
