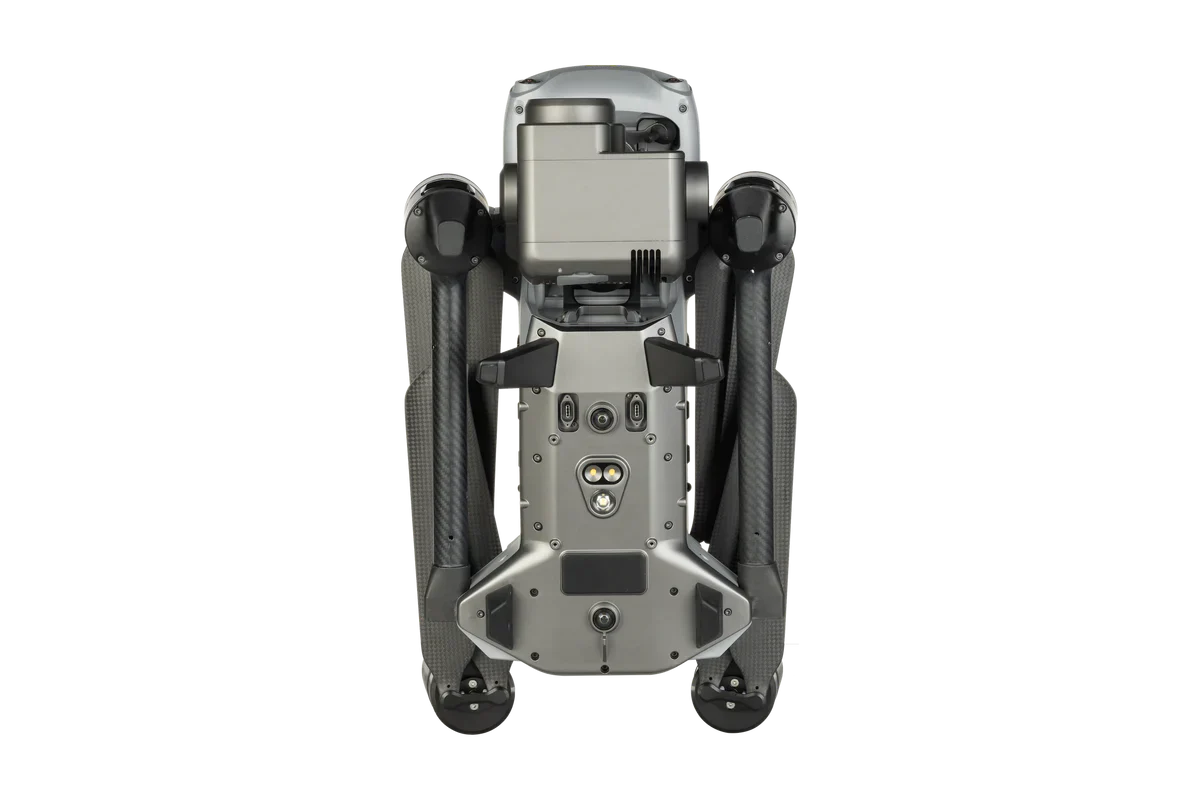

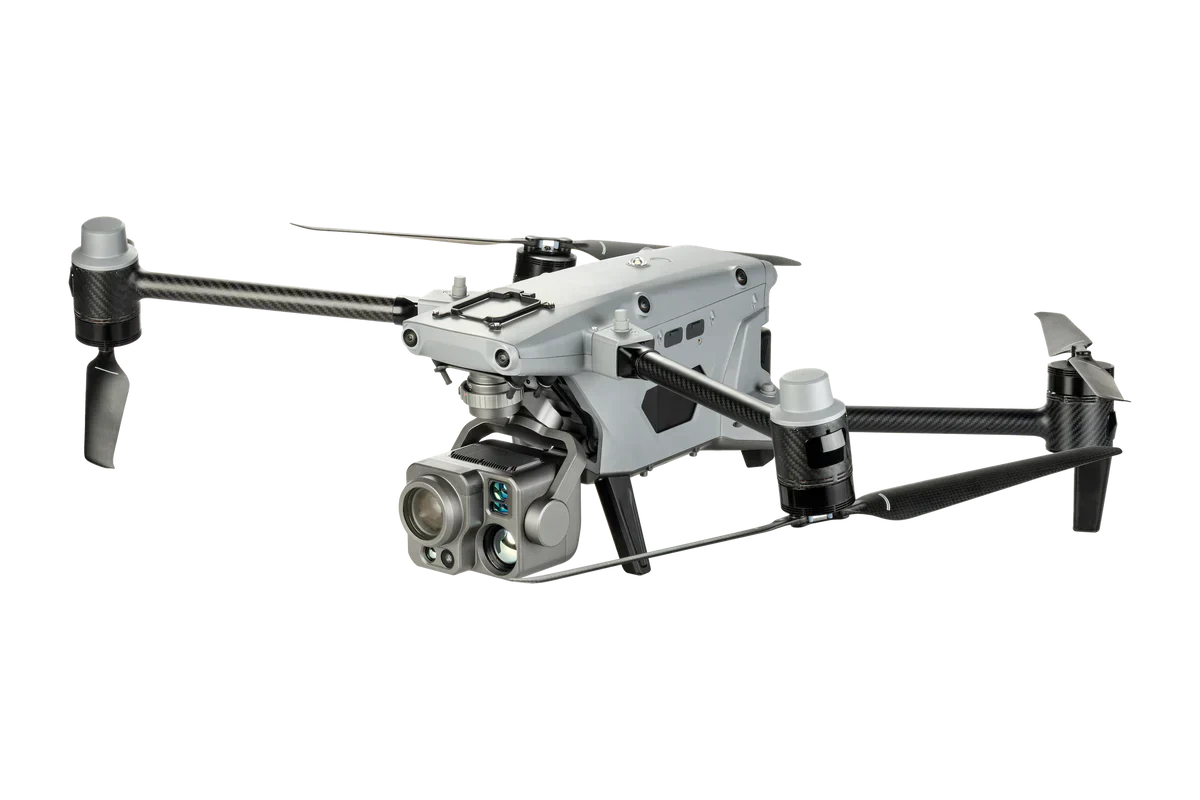

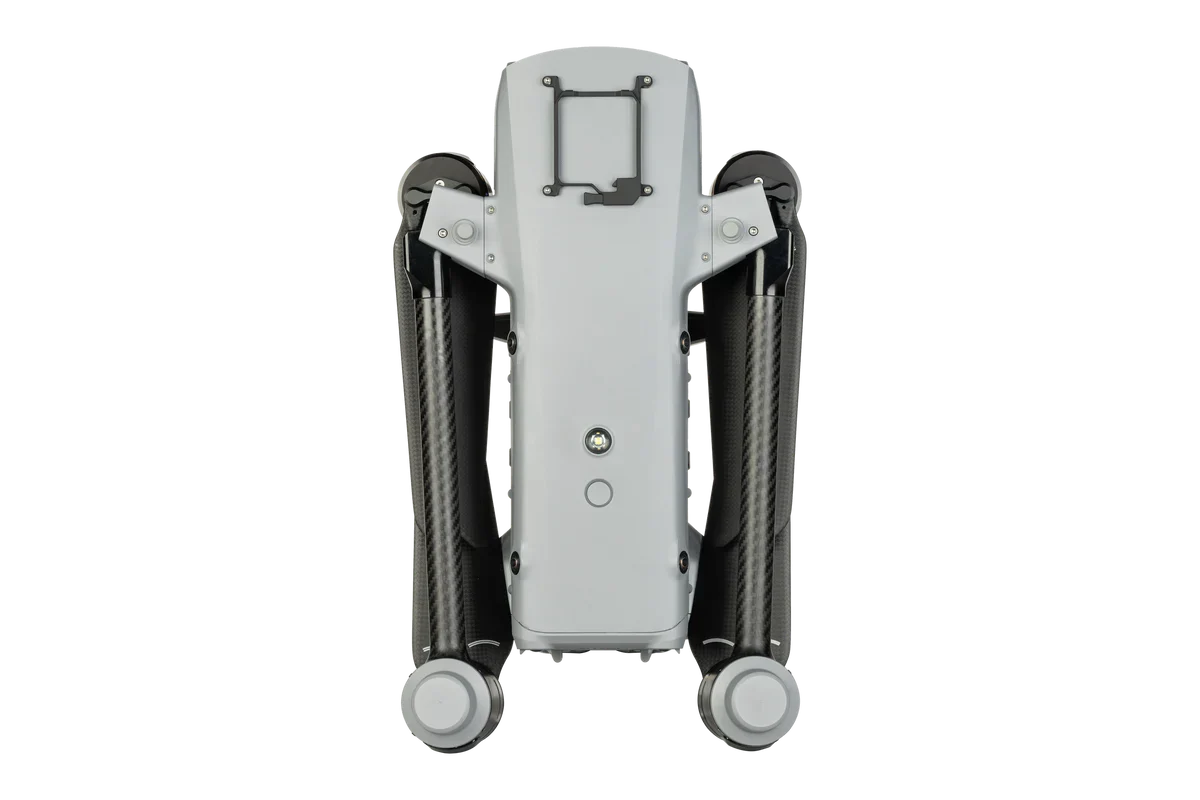

Autel Robotics Alpha L35T Drone
Autel Robotics Alpha L35T Drone
Description
5-in-1 Operation
- Visual (Wide): A 1/2" CMOS sensor offers 48MP image capture at a wide 84° diagonal field of view.
- Visual (Tele): Using an 8MP 1/1.8" CMOS sensor, you can capture images and video at up to 4K resolution, and with up to 35x optical and 560x digital zoom, you can do so for a comfortably safe distance.
- Thermal (Wide and Tele): With an uncooled VOx microbolometer sensor the wide thermal imager gives you a 13mm focal length for wide coverage, while the telephoto imager offers long-range capture with a 45mm focal length. Both will measure temperatures from -4 to 1022°F, capture those thermal images at 640 x 512 resolution, and allow for safe monitoring using a digital zoom up to 56x.
- Laser Rangefinder: Get an ultraprecise reading on targets at a range of 33' to 1.25 miles. Learn their distance, latitude, longitude, and height.
720-Degree Obstacle Avoidance
Anti-Interference
A-Mesh Fleet Networking
Autonomy Engine
Multi-Payload Platform
Skylink 3.0
Mission Types
- Quick: Create temporary quick missions as you are performing other missions. Multiple sub-missions can be stacked.
- Waypoint: Add waypoints for custom flight paths.
- Polygon: Quickly cover an area of interest with a polygon-shaped flight paths with a single click.
Smart Functions
- Tripod: This function locks the gimbal on a specific target as the Alpha hovers and automatically follows the target's movements, always keeping it centered in the frame.
- AI Target Recognition: Using Autel's AI recognition technology, this function will automatically identify and lock onto different types of targets, such as people, boats, and land vehicles. As it does this, the target's location is presented on the map.
Data Security
Additional Features
- Autel Enterprise app
- Return-to-home
- Manual control
- IP55-rated water and dust resistance
- Wind resistance up to 27 mph
- Hot-swappable dual battery operation
- Up to 40 minutes of flight time (no wind)
- Up to 56 mph flight speed (no wind near sea level)
- Create apps and integrate various accessories with Autel Mobile and Payload SDK
What's in the box:
-
Autel Robotics Alpha Industrial Drone
-

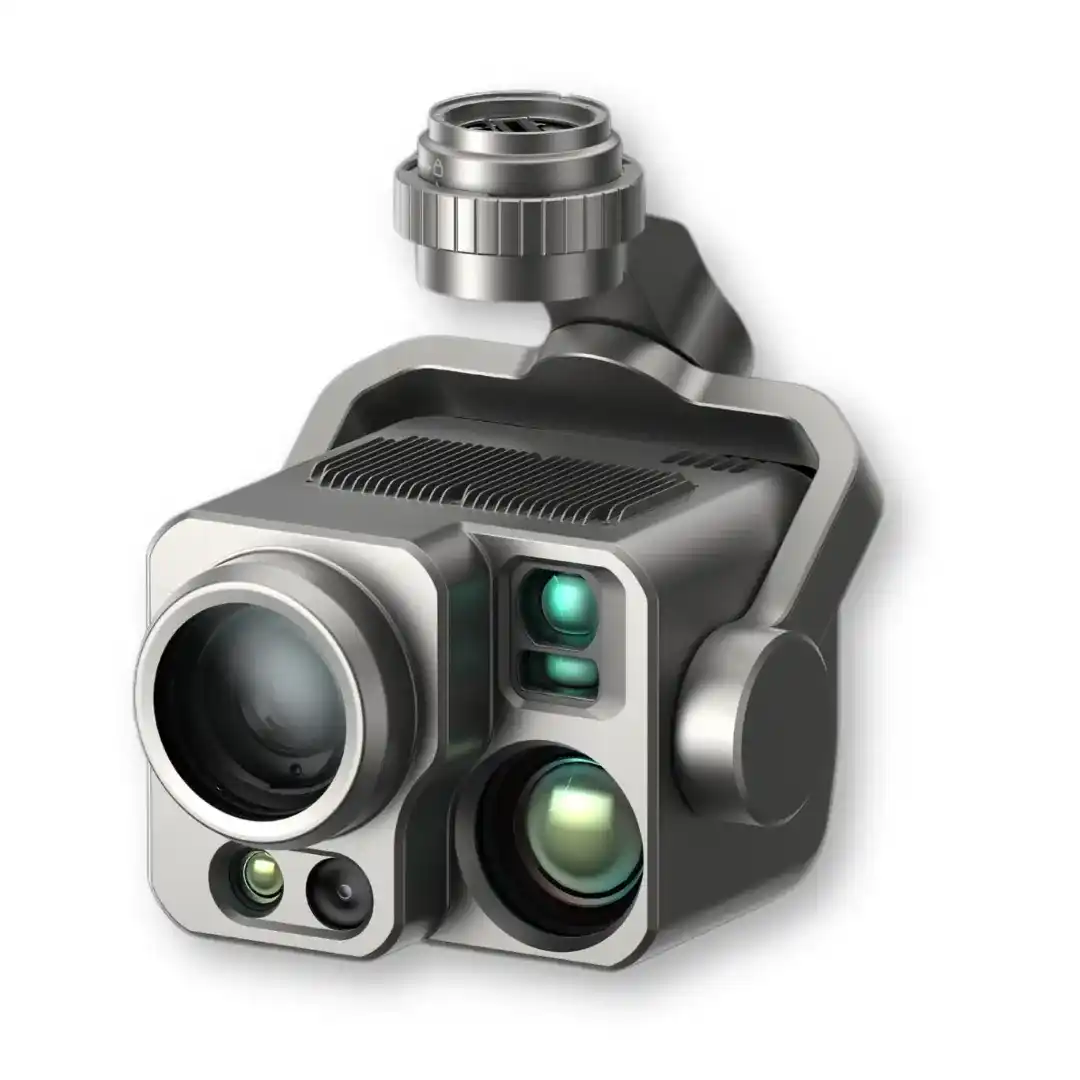

DG-L35T Gimbal Camera
-
6x Dampener
-
Gimbal Protective Cover
-
Lens Cleaner
-
Soft Brush
-
Dust Blower
-
2x Gimbal Interface Cover
-

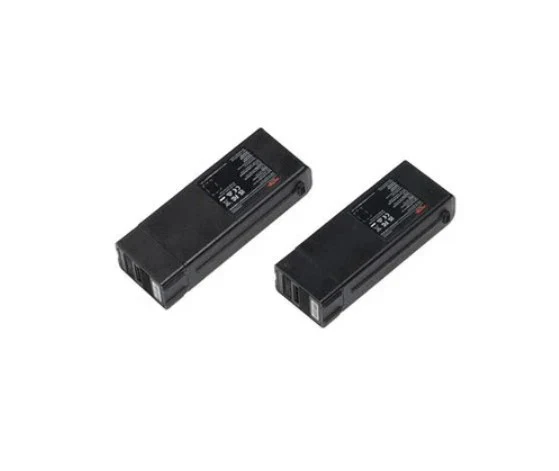

2x Smart Battery
-
EF9-3 Remote Controller
-
Battery Charger
-
AC Power Cable
-
Remote Controller Charger
-
USB-C to USB-C Data Cable
-
USB-C to USB-A Data Cable
-
(See Specification Section for Additional Included Items)
-
Autel Robotics 1 Year Limited Warranty
Product Specifications
Autel Robotics Alpha L35T Drone Product Specifications
| Category | Specification |
|---|---|
| Manufacturer | Autel Robotics |
| SKU | 102002550 |
| UPC | 889520209359 |
| Compatible With | Autel Alpha |
| Short Description | Utilize the thermal camera for inspections, search & rescue, and agricultural analysis efficiently. |
| Flight Time | Up to 40 minutes (no wind) |
| Maximum Speed | 56 mph (no wind near sea level) |
| Obstacle Avoidance | 720° omnidirectional (5-direction dual fisheye + 6-direction millimeter-wave radar) |
| Payload Platform | Multi-payload with 3 mounting points, supports Autel PSDK payloads (searchlights, loudspeakers, 4G/5G modules, etc.) |
| Cameras / Sensors | Visual Wide: 48MP 1/2" CMOS, 84° FOVVisual Tele: 8MP 1/1.8" CMOS, 4K, 35x optical / 560x digital zoomThermal Wide & Tele: Uncooled VOx, 640x512, -4 to 1022°F, digital zoom up to 56x |
| Laser Rangefinder | 33' to 1.25 miles; distance, latitude, longitude, height |
| Autonomy | Autel Autonomy Engine for 3D path planning in complex urban/forest environments |
| Smart Functions | Tripod mode, AI Target Recognition (people, boats, land vehicles) |
| Networking | A-Mesh fleet networking for master-slave or multi-drone control |
| Transmission / Connectivity | Skylink 3.0: 12.4-mile range, 4 antennas, 900 MHz / 2.4 GHz / 5.2 GHz / 5.8 GHz, up to 64 Mb/s, low latency, frequency hopping |
| Data Security | AES-256 encryption; password protection for photos, videos, flight logs; user and aircraft data physically secured |
| Mission Types | Quick missions, Waypoint, Polygon |
| Anti-Interference | GNSS visual positioning, adaptive frequency-hopping, SLAM navigation |
| Water / Dust Resistance | IP55 |
| Wind Resistance | Up to 27 mph |
| Battery | Hot-swappable dual batteries, included: 2x Smart Battery |
| Included Accessories | DG-L35T Gimbal Camera, 6x Dampener, Gimbal Protective Cover, Lens Cleaner, Soft Brush, Dust Blower, 2x Gimbal Interface Cover, EF9-3 Remote Controller, Battery Charger, AC Power Cable, Remote Controller Charger, USB-C to USB-C Data Cable, USB-C to USB-A Data Cable |
| Warranty | Autel Robotics 1 Year Limited Warranty |
Product Manual
Autel Alpha Multi rotor Drone User Manual
Product Warranty
Autel Robotics Warranty
| After-sales Type | Detail | The following conditions do not meet the return and exchange conditions |
|---|---|---|
|
Retreat |
Within 7 calendar days of product purchase: 1. The product packaging, accessories, gifts, manuals are complete, and there is no artificial damage, and it is not activated for use, which does not affect the second sale; 2. After the product is activated, there is a performance failure that is not artificially damaged. |
×The request for return is made more than 7 (15) calendar days from the date of receipt; ×Returned goods are incomplete, the outer packaging, accessories, gifts, and manuals are incomplete, or the appearance is artificially damaged; ×When returning the goods, it is impossible to provide legal proof of purchase or receipts, or to forge or alter the receipts; ×Product quality problems caused by collisions and burns that are not caused by quality problems of the product itself, as well as product quality problems caused by unauthorized modification, foreign objects (water, oil, sand, etc.), improper installation, use and operation not in accordance with the instructions in the manual; ×Torn or altered labels, machine serial numbers, waterproof marks, anti-counterfeit marks, etc.; ×Products damaged by force caused by unavoidable factors, such as fire, flood, lightning, traffic accidents, etc.; ×After contacting Autel Robotics customer service to confirm the return service, the corresponding item was not sent within 7 days. ×Other circumstances described in the policy. |
|
Change |
Within 15 calendar days of product purchase: 1. There is a performance failure that is not artificially damaged, and the machine is disassembled without permission; 2. During transportation, the product was damaged, and the transportation company provided proof of damage. |
|
|
Build |
1. In order to be covered by the warranty, the performance failure must be caused by a non-human error, and the purchased aircraft must be within the warranty period; 2. Any unauthorized dissassembly or modification of the aircraft with outside vendor parts will void the warranty; 3. Please provide valid proof of purchase, such as a bill or receipt. *Note (a) Free maintenance: the repaired parts inherit the warranty period of the whole machine or reset for 90 days, whichever is longer;
(b) Paid repairs: The warranty period for repaired parts will be recalculated;
(c) Selective maintenance, water ingress maintenance: the whole machine will be out of warranty;
(d) Discounted product replacement: Warranty period will be recalculated. |
×A collision or burn accident occurred due to man-made non-product quality problems; ×Damage caused by unauthorized modification, disassembly, or opening of the shell under the guidance of an unofficial manual; ×Damage or water ingress caused by incorrect installation, use and operation not in accordance with the instructions of the manual; ×In the absence of official instructions, the customer repairs the damage caused by the assembly by himself; ×Damage caused by circuit modification guided by unofficial manuals, or improper matching and use of battery packs and chargers; ×All damages caused by flying and shooting that are not operated in accordance with the product manual; ×Damage caused by manipulation in harsh environments, such as strong wind, rain, sand, etc.; ×Damage caused by manipulation in a complex electromagnetic environment or a strong interference source environment, such as mining areas, transmission towers, high-voltage lines, substations, etc.; ×Damage caused by manipulation in the case of mutual interference with other wireless devices, such as transmitter, image transmission signal, WiFi signal interference, etc.; ×Damage caused by take-off when the weight exceeds the safe take-off weight; ×Damage caused by forced flight when parts are aged or damaged; ×Damage caused by reliability or compatibility issues when used simultaneously with third-party components not certified by Autel Robotics; ×Damage caused by insufficient discharge when the battery is insufficient, or the use of a battery with quality problems; ×The machine serial number, factory label and other signs are torn or altered; ×After contacting Autel Robotics customer service to confirm the warranty service, the corresponding item was not sent within 7 calendar days. |
Aircraft Parts Warranty Period (Months)
| Product | Main Parts |
Warranty Period Months/In US |
Warranty Period Months/In EU |
Warranty Period Months/In APEC/SA/MENA |
|---|---|---|---|---|
| EVO Nano Series/EVO Lite Series/EVO II/EVO II PRO | Main Controller | 12 | 24 | 12 |
| Gimbal & Camera | 12 | 24 | 12 | |
| Vision Positioning System | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Propeller | - | - | - | |
| Dragonfish Lite/Dragonfish Standard/Dragonfish Pro | Main Controller | 12 | 24 | 12 |
| Gimbal & Camera(Z2/T3/T3H/M1/L20T/L50T) | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Base Station | 6 | 12 | 6 | |
| Base Station Turntable | 6 | 12 | 6 | |
| Base Station Tripod | 6 | 12 | 6 | |
| Base Station Charger | 6 | 12 | 6 | |
| EVO II Enterprise/EVO II RTK Series/EVO II Dual EVO Max Series EVO Lite Enterprise Series Autel Alpha |
Main Controller | 12 | 24 | 12 |
| Gimbal & Camera | 12 | 24 | 12 | |
| Vision Positioning System | 12 | 24 | 12 | |
|
Propulsion system (excluding propellers) |
12 | 24 | 12 | |
| Remote Controller | 12 | 24 | 12 | |
| RC Charger | 12 | 24 | 12 | |
| Battery | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | 12 Months and Charge Cycle less than 200 Times, whichever go first. | |
| Battery Charger | 12 | 24 | 12 | |
| Propeller | - | - | - | |
| Spotlight | 6 |
12 | 6 | |
| RTK Module | 6 | 12 | 6 | |
| Strobe | 6 | 12 | 6 | |
| Speaker | 6 | 12 | 6 | |
| Live Deck | Live Deck | 6 | 12 | 6 |
| EVO NEST | EVO NEST | 12 | 24 | 12 |
Product FAQs
N/A
